Inse bog gar don chomh-aireachta, damper bog dlúth don chomh-aireachta tarraingt anuas, tarraiceán anuas hinge bog dlúth TRD-N1-18

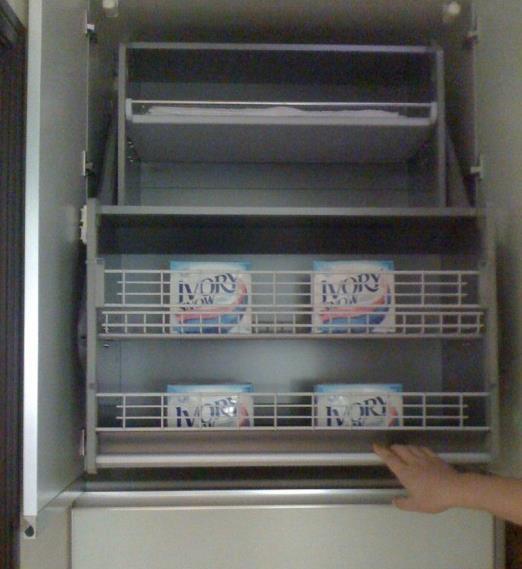

Nuair a úsáidtear hinge dlúth bog le haghaidh comh-aireachta sa drawer, déanfaidh sé an drawer titim síos go mall agus go bog agus coinneoidh sé na hearraí atá i sábháilteacht na comh-aireachta.
Úsáidimid damper den chineál seo sa chomh-aireachta TRD-N1-18
Sonraíocht | |||
Mionsamhail | Max.chasmhóiminte | Casmhóiminte droim ar ais | treo |
TRD-N1-18-R103 | 1 N·m (10kgf·cm) | 0.2 N·m (2kgf·cm) | Deiseal |
TRD-N1-18-L103 | Hit-deiseal | ||
TRD-N1-18-R153 | 1.5 N·m (15kgf·cm) | 0.3N·m (3kgf·cm) | Deiseal |
TRD-N1-18-L153 | Hit-deiseal | ||
TRD-N1-18-R203 | 2 N·m (20kgf·cm) | 0.4 N·m (4kgf·cm) | Deiseal |
TRD-N1-18-L203 | Hit-deiseal | ||
TRD-N1-18-R253 | 2.5 N·m (25kgf·cm) | 0.6 N·m (6kgf·cm) | Deiseal |
TRD-N1-18-L253 | Hit-deiseal | ||
Features: 100 percent performance test Environment test Oil leakage test Lifecycle test>50000 times ISO9001:2008 ROHS directive | Note) Measured at 23 degree ±2 degree ＊Max. angle 110 degree ＊Operating temperature –5-50 degree ＊Weight 12±1g Body and cap material Polybutylene terephthalate (PBT) Rotating shaft material Polyphenylene Sulphide (PPS) ＊Oil type Silicone oil |
Méid:
How to use the damper:
1.TRD-N1-18 is designed to generate a large torque just before a lid closing from a vertical position, as shown in Diagram A,comes to a full closure. When a lid is closed from a horizontal position, as shown in Diagram B, a strong torque is generated just before the lid is fully closed, causing the lid to not close properly. | |
2.When using a damper on a lid, such as the one shown in the diagram, use the following selection calculation to determine the damper torque. How to Use the Damper Example) Lid mass M : 1.5 kg Lid dimensions L : 0.4m Load torque : T{{0}}.5X0.4X9.8÷2 =2.94N·m Based on the above calculation, TRD-N1-303 is selected. | |
3.When connecting the rotating shaft to other parts, please ensure a tight fit between them.
Without a tight fit, the lid will not slow down properly when closing. The corresponding

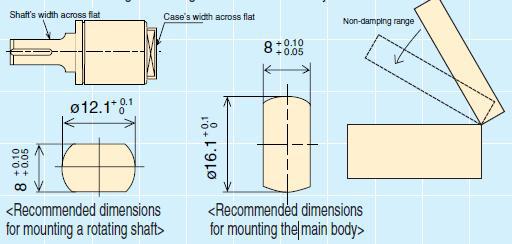

dimensions for fixing the rotating shaft and the main body are as follows.
Welcome to purchase high quality and precise soft close hinge for cabinet, soft close damper for pull down cabinet, drop down drawer soft close hinge trd-n1-18 from Toyou Industry - one of the leading such manufacturers and suppliers. We have been specialized in this field for over 15 years. And we offer customers the most competitive price. Don't hesitate any more.
